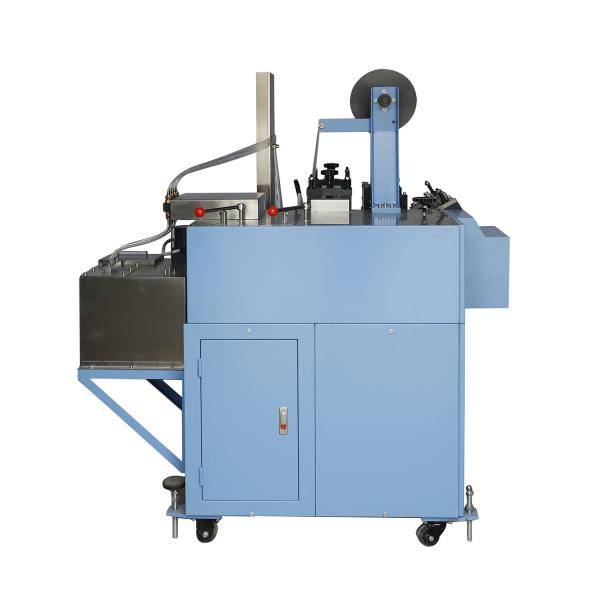

SWW-240-6 Mosquito Mat Liquid Dosing and Automatic Packaging
Machinery
Application
The chemical liquid injection and automatic packaging for mosquito
mat. It is superior quality and timely delivery. The Packaging
machinery absorbs other machine advantages and deleting their
shortages. Packaging machine is with high speed and accurate liquid
injection.
Working Process of the mosquito mat packaging machinery:
1. Blank mats (35x22x2.8mm) are stacked vertically by hand and
automatically feed blank mats to following section.
2. The blank mat is injected with a fixed amount of Liquid.
3. The impregnated mats are automatically wrapped and sealed by
laminated film.
4. The laminated film is cut into sets, each one containing
3/6/9/12/15/18/24/30 or more pieces of mats.
Parameters of the packaging machinery
Packing Speed | About 480-630mats/min (variable) |
Inject Volumn | About 30mg~300mg(adjustable) |
Mat Size | About 35x22x2.8(±0.1mm) |
Packing Material | Laminated heat sealing Aluminium foil(WxL)235~240x500~1000mm |
Liquid Container | 30Liters with agitator and heating device |
power consumption | 2.7kw |
Cutting method | straight cutting and perforation |
weight | 650kg |
Cubic meters | 4.0m³ |
Working Process of the packaging machinery
1. Blank mats (35x22x2.8mm) are stacked vertically by hand and
automatically feed blank mats to following section.
2. The blank mat is injected with a fixed amount of Liquid.
3. The impregnated mats are automatically wrapped and sealed by
laminated film.
4. The laminated film is cut into sets, each one containing
3/6/9/12/15/18/24/30 or more pieces of mats.
5. The detector function automatically stops the machine if a mat
is wrapped without being injected, or it is not wrapped
(selective).
Features of the packaging machinery
(1) The way of liquid injection is mechanical way and the precision
is high which deviation could be controlled within ±5mg. Six pumps
separately adjust the dose (30mg-300mg). The pumps adopt the metal
material, of stable performance and high life.
(2) The qualification rates of the products are high, and can be
controlled above 99.7%.
(3) The cut model is advanced and scientific, and adopted the
rotary end cutting with long life, low noise and pinpoint accuracy
instead of the traditional pressing cutting way.
(4) With high producing efficiency-could work stably at 480~630
tablets/minute.
(5) The design of the circuit is simple and easy to maintain.
(6) Cutting can be set to 1 to 100 rows per time
Rows of Cutting Can Be Set As Requested As Below and Also can be
set accordding to buyer's request
Why choose us
1. We are probably the only producer for the mosquito mat packing
machine in China, if other company sell this machine, they should
buy from us then resell it.
2.We are manufacture but not trade company.
3. We have professional staff who can advise you the suitable
packing machine for your specific need.
4. Our professional workers will make the perfect packing machine
for you.
5. Well trained and experienced staff will answer your inquiry
timely.
6. We provide competitive price and fine quality packing machines.
Our Services:
We provide after-sale services both on-site service and email/phone
services, the email/phone service will be free of charge.
if you meet any problem during using our machine, just send email
to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine.
We also provide customized products according to customer's
request.
